Merida

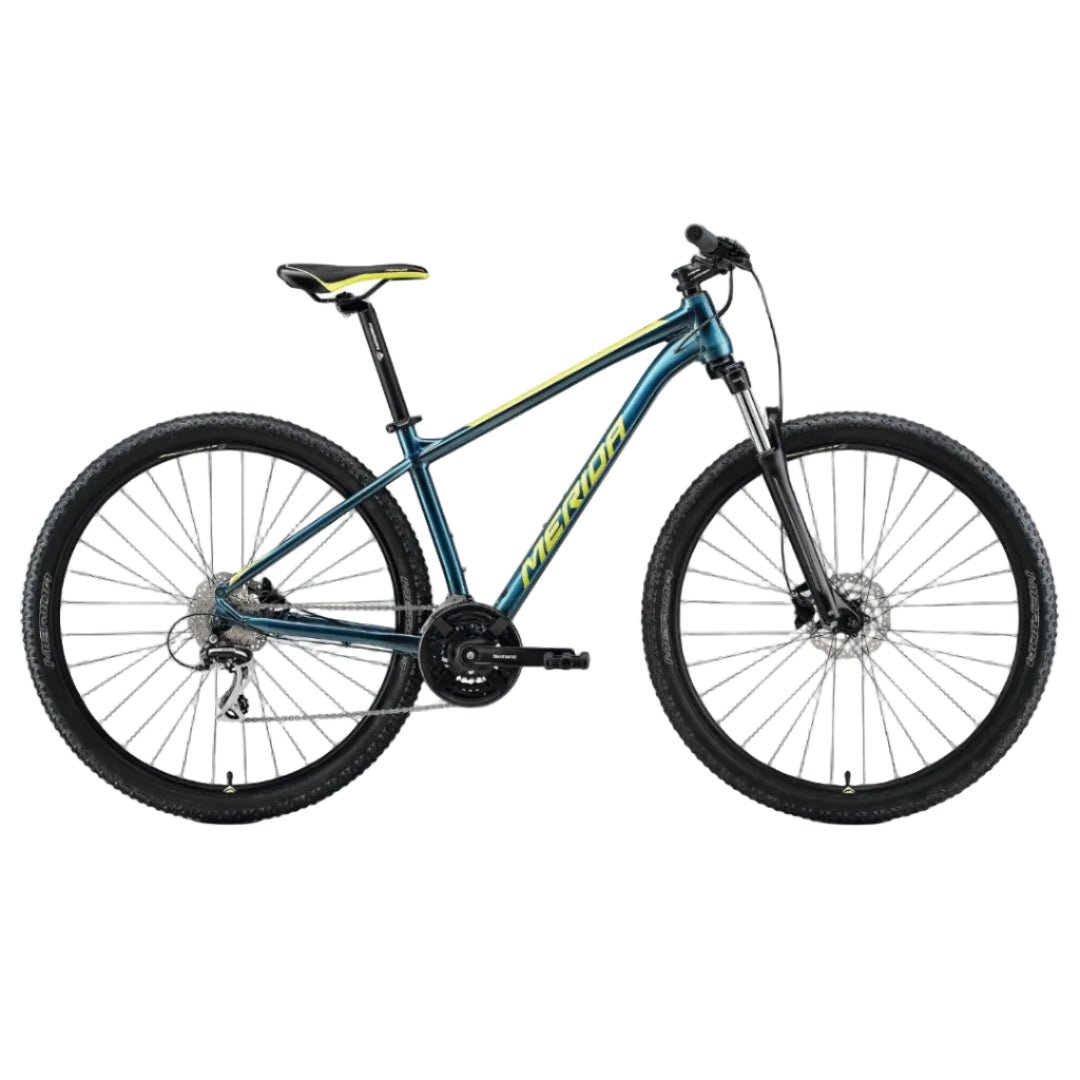

Merida Big Nine 20 - 3X - Teal-Blue/Lime
The Merida BIG.NINE 20-3x is a versatile aluminium hardtail designed for riders stepping into cross-country and trail riding. Equipped with fast-rolling 29” wheels, 100 mm front suspension, and a triple chainring drivetrain, it offers a wide gear range for climbs, flats, and long-distance rides.
Its upright and comfort-focused geometry ensures better control, reduced fatigue, and confidence on varied terrain — making it a solid choice for beginners and recreational riders who value comfort and reliability over aggressive race geometry.
Key Highlights
- Lightweight double-butted aluminium frame
- Fast and stable 29er wheel platform
- 100 mm SR Suntour suspension fork with lockout
- 3x drivetrain for maximum gear range
- Upright geometry for comfort and control
- Internal cable routing for a clean finish
Intended Use & Core Specifications
| Specification | Details |
|---|---|
| Intended Use | Cross Country |
| Wheel Size | 29” |
| Frame Material | Aluminium |
| Fork Travel | 100 mm |
| Braking System | Hydraulic Disc Brakes |
| Drivetrain | 3x8 Speed |
| Suspension Type | Front Suspension (Hardtail) |
Frame & Geometry
| Component | Specification |
|---|---|
| Frame | BIG.NINE TFS III Aluminium |
| Max Tyre Clearance | 29 x 2.25” |
| Rear Axle Standard | 135 x 9 mm |
| Bottom Bracket Standard | BSA |
| Cable Routing | Internal |
| Riding Position | Upright, comfort-oriented |
Suspension
| Component | Specification |
|---|---|
| Fork | SR Suntour XCT30 HLO |
| Travel | 100 mm |
| Spring Type | Coil |
| Lockout | Yes |
| Max Tyre Size | 29 x 2.25” |
Drivetrain
| Component | Specification |
|---|---|
| Shifters | Microshift TS39-L / TS39-8R |
| Front Derailleur | Shimano FD-TY700 |
| Rear Derailleur | Shimano RD-M360 |
| Crankset | Shimano TY301 (42-34-24T) |
| Cassette | SunRace CSM668, 11–32T, 8-speed |
| Chain | SunRace M84 |
| Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
Brakes
| Component | Specification |
|---|---|
| Front Brake | Power DS100, 2-piston |
| Rear Brake | Power DS100, 2-piston |
| Brake Type | Hydraulic Disc |
Wheels & Tyres
| Component | Specification |
|---|---|
| Rims | MERIDA CC, Aluminium |
| Front Hub | Shimano TX505, 100 x 9 mm |
| Rear Hub | Shimano TX505, 135 x 9 mm |
| Spoke Count | 32H |
| Mount Type | Centerlock |
| Tyres | MERIDA K1080, 29 x 2.2” (Wire Bead) |
Cockpit & Contact Points
| Component | Specification |
|---|---|
| Handlebar | MERIDA CC, Aluminium, 690 mm width, 15 mm rise |
| Stem | MERIDA CC, Aluminium, 31.8 mm, 6° |
| Stem Lengths | S:70 mm / M:80 mm / L:90 mm / XL:100 mm / XXL:110 mm |
| Grips | MERIDA EC |
| Saddle | MERIDA SPORT COMFORT |
| Seatpost | MERIDA CC, Aluminium, 30.9 mm, 15 mm setback |
| Pedals | VP VPE-891 |
Who Is This Bike For?
- New and intermediate riders entering cross-country riding
- Cyclists who want maximum gear range for mixed terrain
- Riders prioritizing comfort, control, and reliability
- Daily fitness rides, weekend trails, and long-distance cruising
MTB Hardtails – Size Chart
| Frame Size | Recommended Rider Height |
|---|---|
| XS | Below 163 cm |
| S | 157 – 173 cm |
| M | 167 – 183 cm |
| L | 177 – 190 cm |
| XL | 187 – 196 cm |
| XXL | Above 192 cm |
