Marin

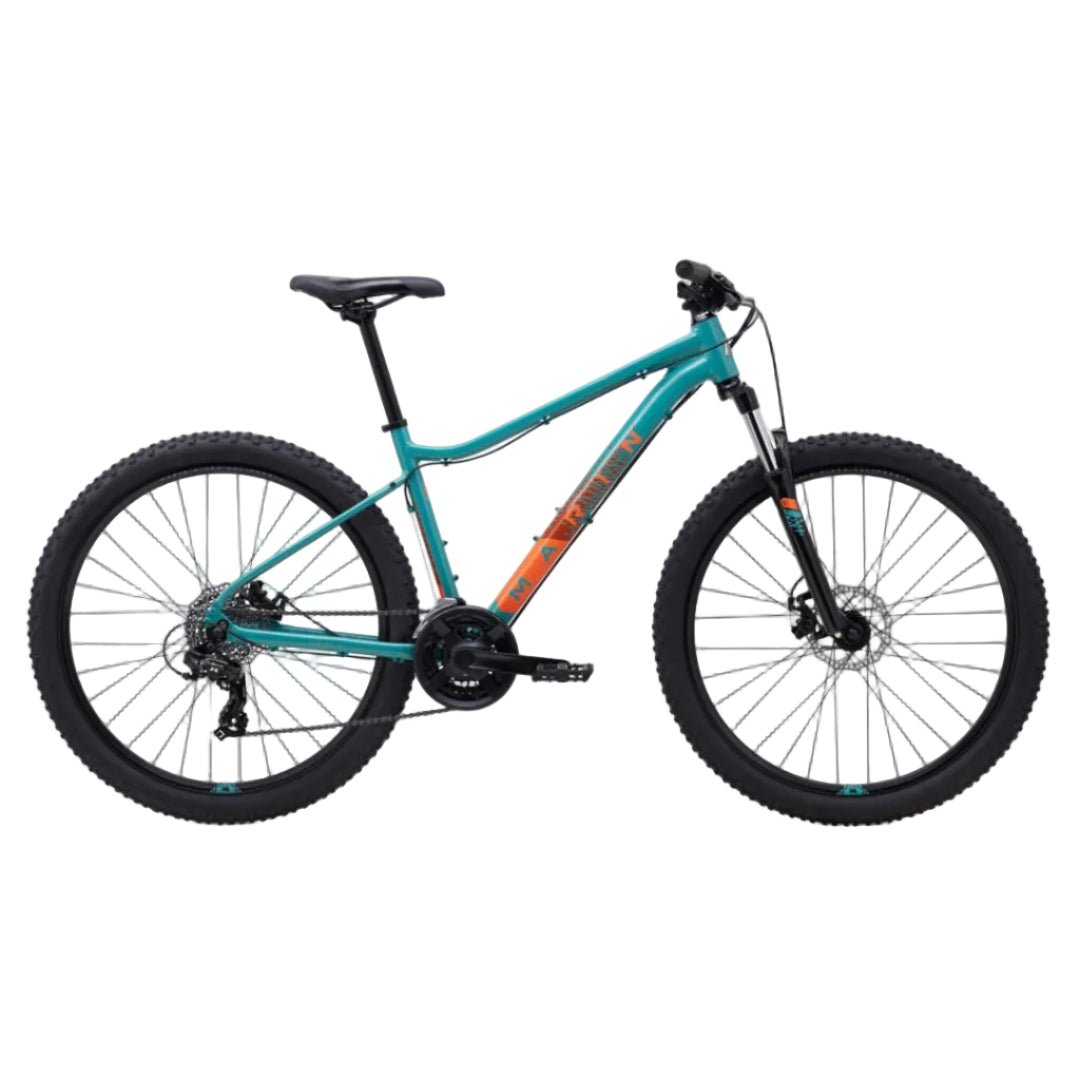

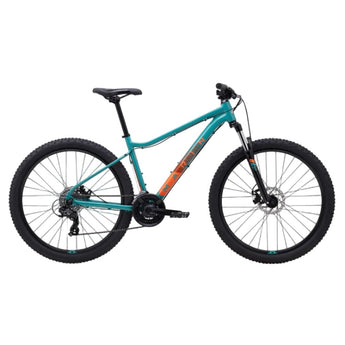

Marin Wildcat Trail 1 - Teal
RECREATIONAL MOUNTAIN BIKING
ENTRY-LEVEL RIDERS
FITNESS DIRT ROAD RIDING
The Wildcat Trail family crosses boundaries between Trail and Sport mountain bikes, with the Wildcat Trail 5 and Wildcat Trail 3 designed for the female hardtail enthusiast looking for a full featured trail mountain bike, and the Wildcat 1 positioned for the recreational mountain bikers.
SPECIFICATIONS
| FRAME |
Series 1 6061 Aluminum, Women's Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
|
| FRONT SUSPENSION |
SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
|
| RIMS | Marin, Double Wall Alloy |
| HUB, REAR | Formula, 32H |
| HUB, FRONT | Formula, 32H |
| SPOKE, NIPPLES | 15g Black Stainless Steel |
| TIRES | MTB, 27.5" |
| DERAILLEUR, REAR |
Shimano Tourney, 7-Speed
|
| DERAILLEUR, FRONT | Shimano FD-TX500 |
| SHIFT LEVER |
Shimano Tourney 3x7-Speed
|
| CRANKSET |
Alloy Crank, Steel Chainrings, 42/34/24T
|
| BOTTOM BRACKET |
Sealed Cartridge Bearings, Square Taper
|
| CHAIN | KMC Z50 |
| CASSETTE | SunRace 7-Speed, 11-34T |
| BRAKE, FRONT |
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
|
| BRAKE, REAR |
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
|
| BRAKE LEVERS |
Shimano w/ Integrated Shifters
|
| HANDLEBAR |
Marin 31.8 Riser, 12mm Rise, 780mm Width
|
| STEM |
Marin Alloy, 31.8mm Clamp, 45mm
|
| GRIPS | Marin Dual Density |
| HEADSET | FSA No.10-P |
| SEATPOST | Marin Alloy, 30.9 |
| SADDLE | Marin MTB |
| PEDALS | Nylon Platform |
Specifications, pricing, and availability are subject to change without notice.
SIZING AND GEOMETRY
SIZE GUIDE :
| Size | Rider height range |
| XS | 146cm to 157cm |
| S | 157cm to 165cm |
| M | 165cm to 173cm |
| L | 173cm to 180cm |
| XL | 180cm to 188cm |
GEOMETRY:
| XS | S | M | L | ||
| A | STACK | 580.8 | 585.5 | 590 | 595 |
| B | REACH | 400 | 415 | 430 | 445 |
| C | HEADTUBE ANGLE | 68.5° | 68.5° | 68.5° | 68.5° |
| D | HEADTUBE LENGTH | 100 | 105 | 110 | 115 |
| E | SEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| F | SEATTUBE LENGTH | 330 | 381 | 431 | 481 |
| G | TOPTUBE EFFECTIVE | 566.5 | 583 | 599.2 | 615.5 |
| H | BB HEIGHT | 307 | 307 | 307 | 307 |
| I | BB DROP | 48 | 48 | 48 | 48 |
| J | CHAINSTAY | 430 | 430 | 430 | 430 |
| K | WHEELBASE | 1084.5 | 1101.3 | 1118.2 | 1135 |
| L | STANDOVER HEIGHT | 613.02 | 646.3 | 686.87 | 723.7 |
| M | FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | |
| HANDLEBAR WIDTH | 740 | 740 | 740 | 740 | |
| STEM LENGTH | 45 | 45 | 45 | 45 | |
| CRANK LENGTH | 170 | 170 | 175 | 175 |
All lengths in millimeters
