Marin

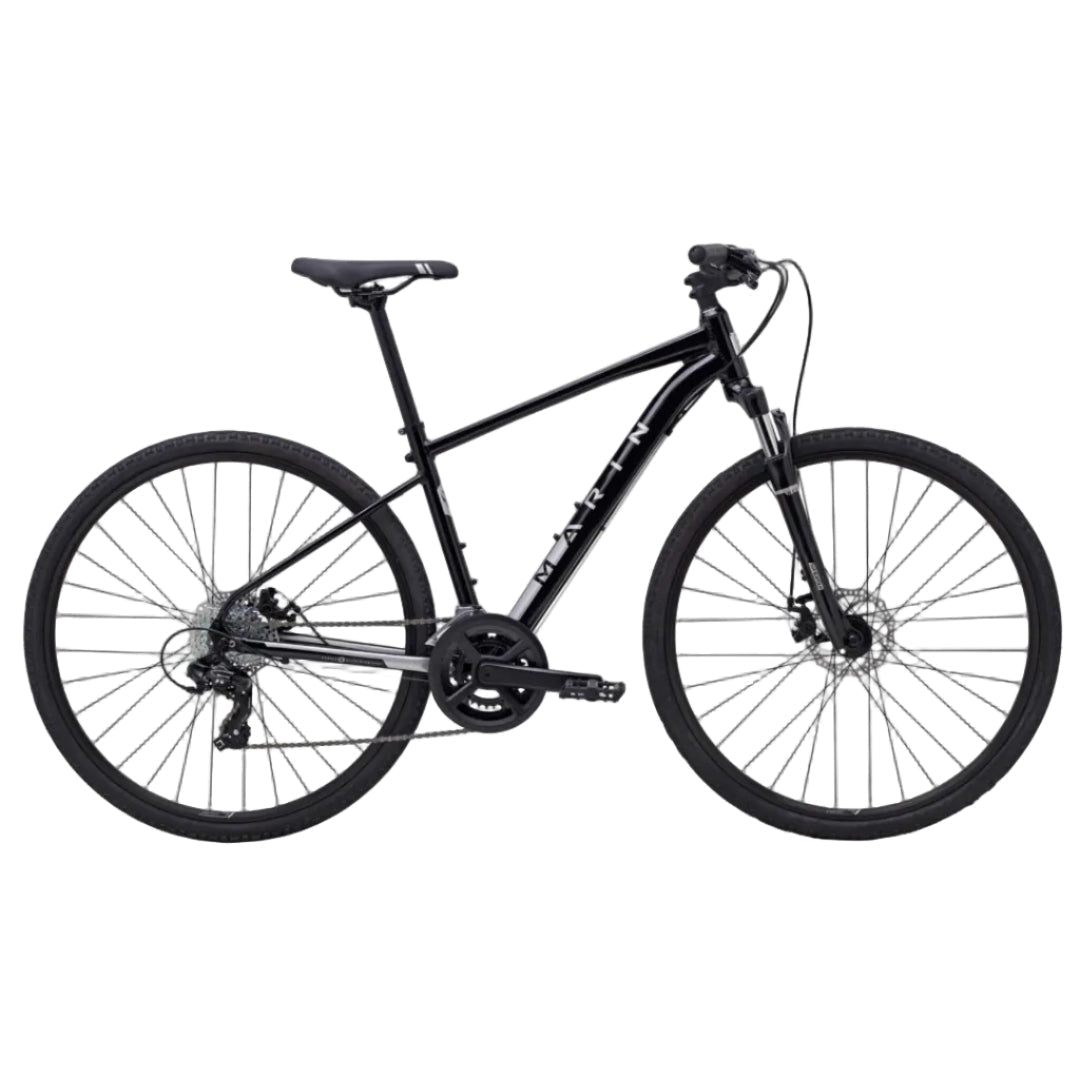

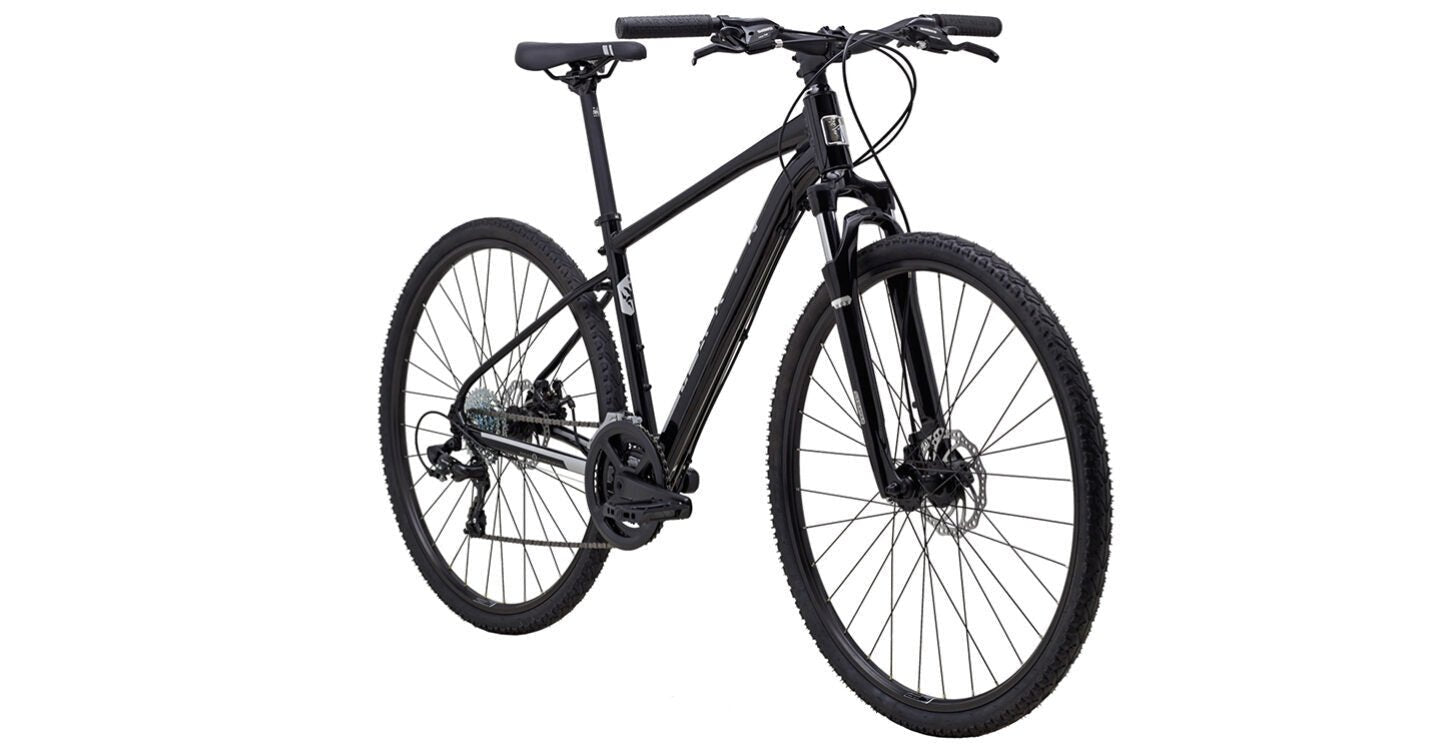

Marin San Rafael DS1 - Black
FITNESS RIDING
MIXED SURFACES AND TERRAIN
TOWN AND COUNTRY COMMUTING
The San Rafael and San Anselmo are for riders looking to explore mixed surfaces and terrain, travel the local rail-trail system, and explore paved paths and dirt doubletrack equally at home. Dual Sport bikes are a bridge between pavement and dirt, for the adventurous fitness and recreational rider.
SPECIFICATIONS
| FRAME |
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
|
| FORK |
SR Suntour NEX, 63mm Travel, Preload Adjustment
|
| RIMS |
Marin Aluminum Double Wall
|
| HUB, REAR |
Forged Aluminum Alloy, 32H
|
| HUB, FRONT |
Forged Aluminum Alloy, 32H
|
| SPOKE, NIPPLES |
14g Stainless Steel |
| TIRES |
Kenda Kahn, 700Cx40mmmm
|
| DERAILLEUR, REAR |
Shimano Tourney, 7-Speed
|
| DERAILLEUR, FRONT | Shimano TY710 |
| SHIFT LEVER |
Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
|
| CRANKSET |
Forged Alloy Crank, 46/30T, Ring Guard
|
| BOTTOM BRACKET |
Sealed Cartridge Bearings, Square Taper
|
| CHAIN | KMC Z-8.3 |
| CASSETTE |
SunRace 7-Speed, 11-34T
|
| BRAKE, FRONT |
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
|
| BRAKE, REAR |
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
|
| BRAKE LEVERS |
Shimano w/ Integrated Shifters
|
| HANDLEBAR |
Marin Alloy Riser
|
| STEM | Marin Alloy, 31.8mm Clamp |
| GRIPS | Dual Density Ergonomic |
| HEADSET | FSA No.10-P |
| SEATPOST | Marin Alloy, 27.2mm |
| SADDLE |
Marin Fitness Plush
|
| PEDALS | Dual Sport Platform |
Specifications, pricing, and availability are subject to change without notice.
SIZING AND GEOMETRY
SIZE GUIDE :
| SIZE | HIEGHT RANGE |
| XS | 150cm to 157cm |
| S | 160cm to 168cm |
| M | 168cm to 178cm |
| L | 178cm to 188cm |
| XL | 188cm to 193cm |
GEOMETRY:
| Size | XS | S | M | L | XL | |
| a | Stack | 588.99 | 598.41 | 607.85 | 621.99 | 640.84 |
| b | Breach | 382.43 | 377.94 | 384.26 | 400.04 | 405.28 |
| c | Cheadtube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| d | Dheadtube Length | 100 | 110 | 120 | 135 | 155 |
| e | Eseattube Angle | 73.5° | 73° | 73° | 73° | 73° |
| f | Fseattube Length | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| g | Gtoptube Effective | 556.9 | 560.9 | 570.1 | 590.2 | 601.2 |
| h | Hbb Height | 291 | 291 | 291 | 291 | 291 |
| i | Ibb Drop | 60 | 60 | 60 | 60 | 60 |
| j | Jchainstay | 445 | 445 | 445 | 445 | 445 |
| k | Kwheelbase | 1054.19 | 1053.04 | 1062.7 | 1083.48 | 1095.39 |
| l | Lstandover Height | 660 | 706.5 | 749.3 | 781.4 | 815 |
| m | Mfork Offset | 41 | 41 | 41 | 41 | 41 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | |
| Handlebar Width | 680 | 680 | 680 | 700 | 700 | |
| Stem Length | 75 | 75 | 90 | 90 | 105 | |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
All lengths in millimeters
