Marin

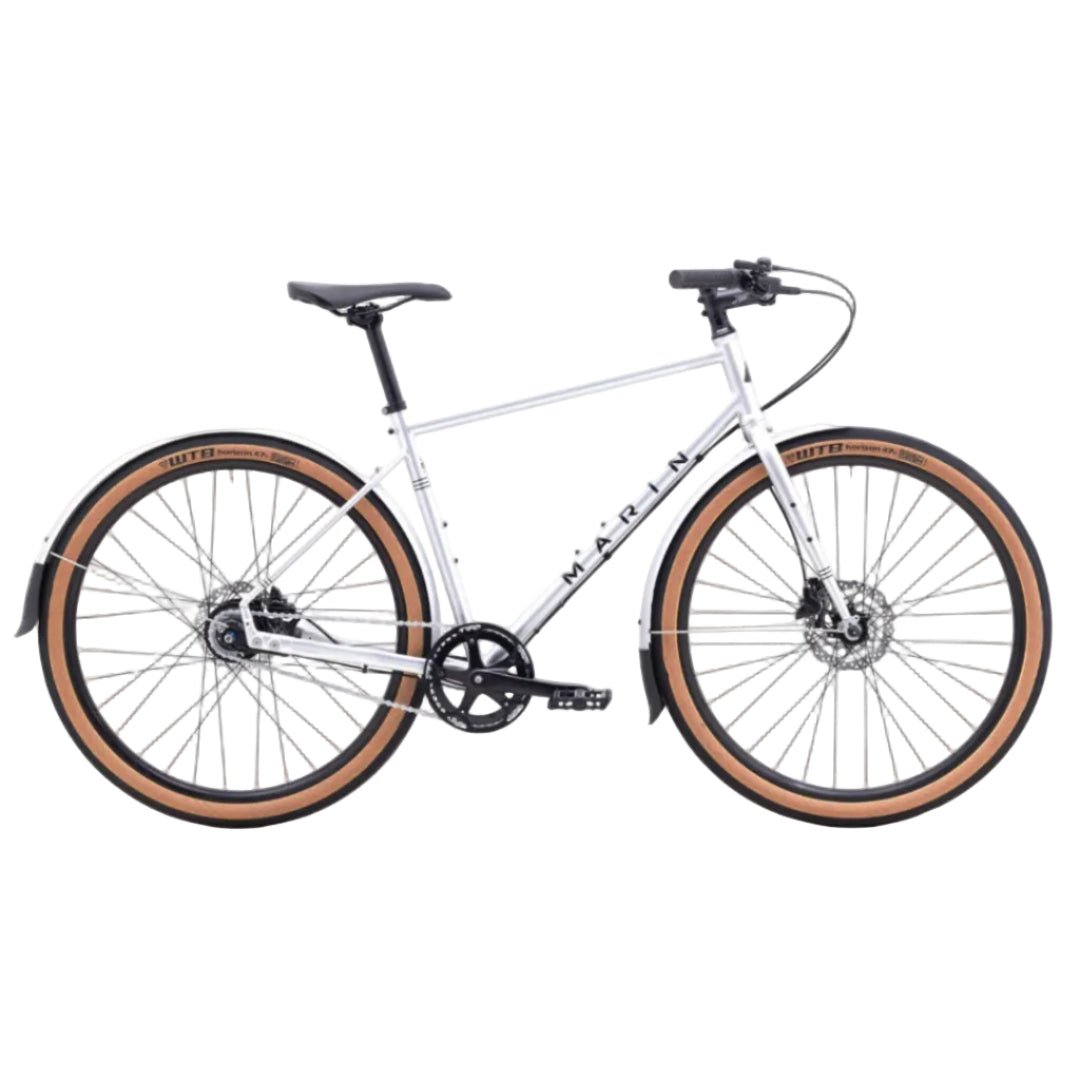

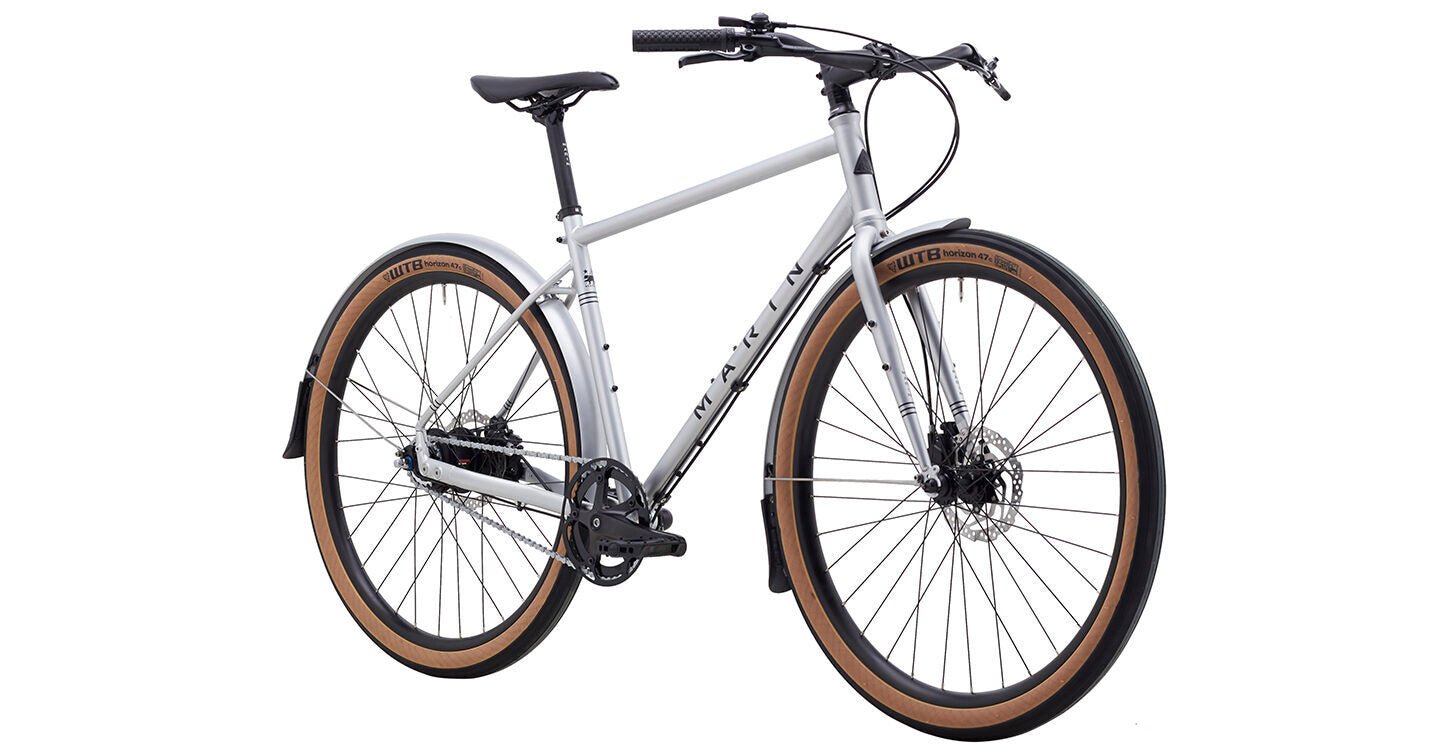

Marin Muirwoods RC - Silver
EVERYDAY ADVENTURES
URBAN WARRIOR
OUT OF THE BOX RIDING
The Muirwoods RC is the ultimate mountain bike based commuter with a Series 2 CrMo frame featuring new slider dropouts for chain tensioning, an internally geared 8-speed Shimano Nexus hub, and 650Bx47mm “Road Plus” tires that accelerate quickly and roll almost as fast as skinnier road tires while eating up potholes and curbs.
SPECIFICATIONS
| FRAME |
Series 2 Double Butted CrMo w/Marin Slider Dropouts, 650B Wheels, Flat Mount Disc Brake, Fender and Rack Mounts, Rear Kickstand Mount
|
| FORK |
CrMo, Fender and Rack Eyelets, IS Disc Mount
|
| RIMS |
Marin Aluminum Double Wall, 27mm Inner, Disc Specific
|
| HUB, REAR |
Shimano Nexus 8-Speed Internally Geared Hub, Centerlock Disc, 32H
|
| HUB, FRONT |
Forged Aluminum Alloy, Centerlock Disc, 32H
|
| SPOKE, NIPPLES |
14g Black Stainless Steel |
| TIRES |
WTB Horizon, 650Bx47mm, Wire Bead
|
| DERAILLEUR, REAR |
- |
| DERAILLEUR, FRONT |
- |
| SHIFT LEVER |
MicroSHIFT 8-Speed Thumb Shifter
|
| CRANKSET |
Forged Aluminum, Alloy Ring Guard, 42T
|
| BOTTOM BRACKET |
Sealed Cartridge Bearings, Square Taper
|
| CHAIN |
KMC Z410RB w/ Anti-Corrosion Coating |
| CASSETTE |
Shimano Nexus Cog, 19T |
| BRAKE, FRONT |
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
|
| BRAKE, REAR |
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
|
| BRAKE LEVERS |
Shimano BL-M201 Hydraulic
|
| HANDLEBAR |
Marin Alloy Swept-Back City Bar, 31.8mm Clamp
|
| STEM |
Marin 3D Forged Alloy |
| GRIPS |
Marin Locking |
| HEADSET |
FSA No.8D, Sealed Cartridge Bearings |
| SEATPOST |
Marin Alloy, 27.2mm |
| SADDLE |
Marin Beyond Road Concept
|
| PEDALS |
Commute Platform |
| FENDER |
Custom Extruded Aluminum Alloy w/ Stainless HardwareCustom Extruded Aluminum Alloy w/ Stainless Hardware |
Specifications, pricing, and availability are subject to change without notice.
SIZING AND GEOMETRY
SIZE GUIDE :
| Size |
Rider height range |
| XS |
4'11" to 5'2" |
| S |
5'2" to 5'6" |
| M |
5'6" to 5'10" |
| L |
5'10" to 6'2" |
| XL |
6'2" to 6'4" |
GEOMETRY:
| Size |
S |
M |
L |
|
| A |
Stack |
588.99 |
598.41 |
607.85 |
| B |
Reach |
382.43 |
377.94 |
384.26 |
| C |
Headtube Angle |
70.5° |
70.5° |
70.5° |
| D |
Headtube Length |
100 |
110 |
120 |
| E |
Seattube Angle |
73.5° |
73° |
73° |
| F |
Seattube Length |
381 |
431.8 |
482.6 |
| G |
Toptube Effective |
556.9 |
560.9 |
570.1 |
| H |
BB Height |
291 |
291 |
291 |
| I |
BB Drop |
60 |
60 |
60 |
| J |
Chainstay |
445 |
445 |
445 |
| K |
Wheelbase |
1054.19 |
1053.04 |
1062.7 |
| L |
Standover Height |
624.2 |
670.4 |
715 |
| M |
Fork Offset |
41 |
41 |
41 |
| Seatpost Diameter |
27.2 |
27.2 |
27.2 |
|
| Handlebar Width |
640 |
640 |
640 |
|
| Stem Length |
75 |
75 |
90 |
|
| Crank Length |
170 |
170 |
175 |
All lengths in millimeters
